Short Notes #4

The following summarizations can be helpful when designing isothermal reactors.

The concentration of a species in a chemical reaction can be expressed as a function of conversion using the following algorithm.

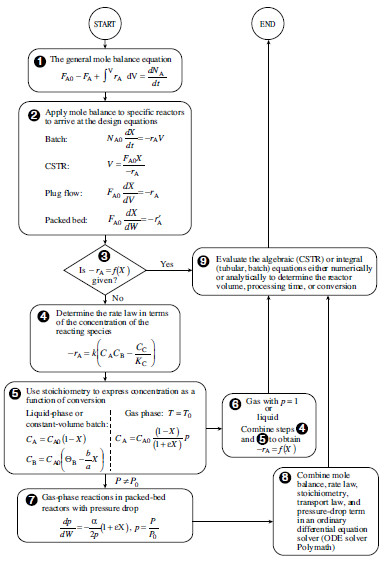

The following is an algorithm that can be followed when designing an Isothermal-reaction for conversion.

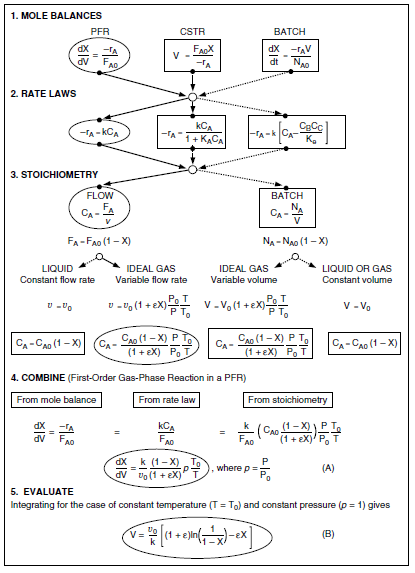

Algorithm for isothermal reactors is summarized below.


(Source: Elements of Chemical Reaction Engineering (5th Edition) by H. Scott Fogler)
